ID # 9579340562652 Model # BH0210003-1
Bromic Tungsten Smart-Heat Gas Patio Heater — 300 & 500 Series
- Liftgate freight delivery. Delivered by freight to the lower 48 with liftgate service. Inspect the shipment before you sign; if anything is damaged, note it on the delivery receipt and call us right away. We'll take it up with the distributor and manufacturer.
- 30-day returns on unused, unassembled items (20% restocking fee; return freight at your cost). Terms
- Full manufacturer warranty, which applies because we are an authorized Bromic Heating dealer.
- See the delivery and order process
Send your opening, fuel type, voltage, or project details and we'll confirm the right model before you order.
Owner-run authorized Bromic Heating dealer · Albion, PA · Mon–Fri 9 AM–8 PM ET · americanhearthsupply@americanhearthsupply.com
About this model

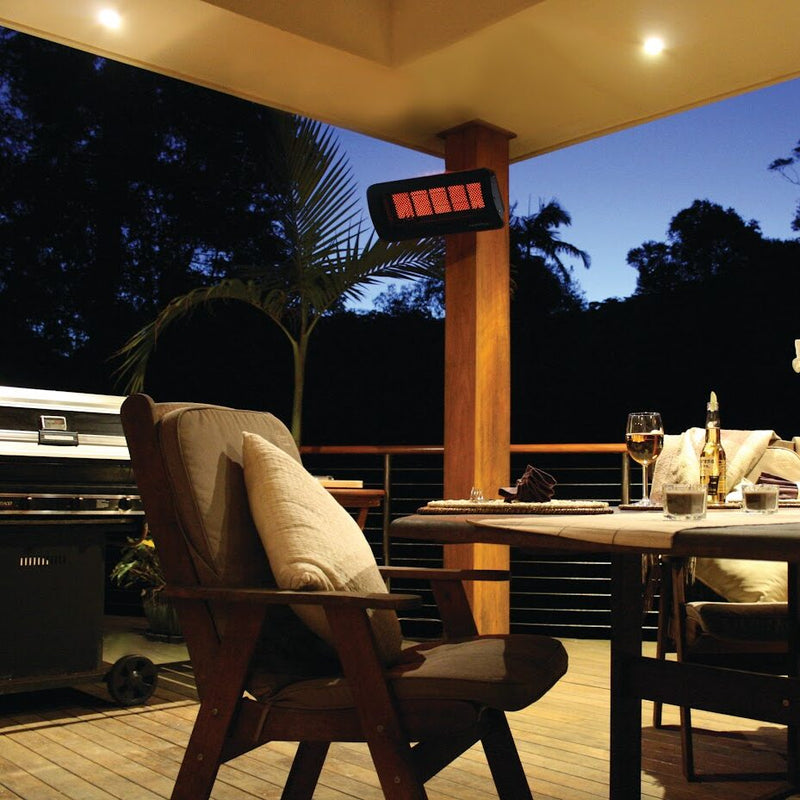

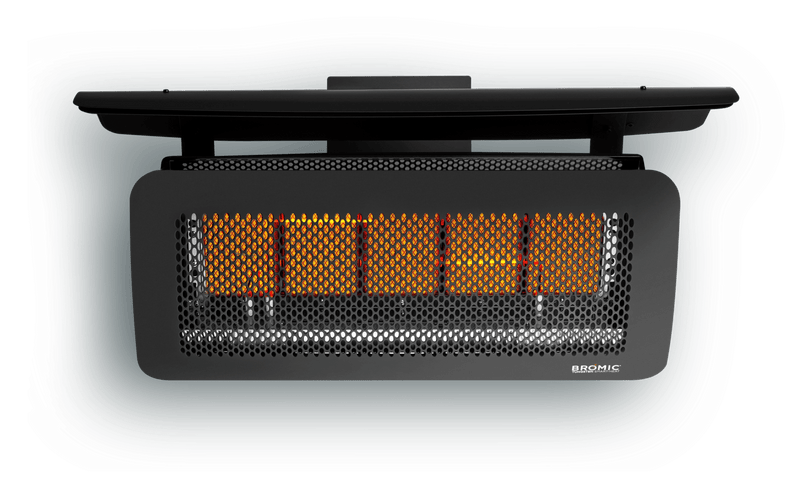

The Bromic Tungsten Smart-Heat Gas is a wall- or ceiling-mounted radiant gas heater in matte black with a honeycomb mesh front, on a pivot-arm bracket so you can aim the heat. It's built for covered outdoor spaces — covered patios, porches, terraces and outdoor rooms, residential or commercial. Two sizes, each in natural gas or liquid propane.
Tungsten vs. Platinum
Both are Bromic's fixed-mount gas heaters with the same mounting heights, clearances, gas requirements and 2-year warranty. The Platinum has a ceramic-glass front. The Tungsten has the matte black mesh front, a slightly higher gas input (26,000 / 43,000 BTU against 23,600 / 39,800) and a lower price.
Choosing Your Size
- Tungsten 500 — 43,000 BTU gas input, 25.4″ wide, Bromic's published heat area 215 sq ft.
- Tungsten 300 — 26,000 BTU gas input, 19.3″ wide, Bromic's published heat area 160 sq ft. Suits smaller zones and multi-heater runs along a long space.
Natural gas and propane are separate SKUs and aren't interchangeable — confirm your fuel before ordering. Select your configuration above.
Before You Order
- It must go under a cover. Bromic's manual: outdoor use only, and "this appliance is to be protected from rain. Install under a protective cover." Don't plan it for a spot open to rain, or for any indoor residential location.
- Ventilation. In a space with a roof and more than two walls, Bromic requires at least 25% of the total wall area to be completely open (the manual gives the full rule and examples).
- Mounting height and clearances. At least 8 ft from the floor. Keep combustibles 3 ft from the top and sides, or 14″ from the top with the Tungsten Smart-Heat heat shield (part 2620165 / 2620166). Bromic's cut sheet drawing shows the full wall- and ceiling-mount envelope: 142″ overall without a heat deflector, 123.2″ with one.
- Gas. ½″ NPT female inlet. Natural gas supply 6–14″ W.C.; propane 11–14″ W.C.
- Power. A 110 V outlet for the ignition and controls (under 2 A). The heat comes from gas, not electricity.
- Installer. Bromic requires installation by an authorized person to local codes, or ANSI Z223.1/NFPA 54 and CSA B149.1 where there are none.
- Wind. The manual rates it to function in winds up to 10 mph.
Controls
One of these is required and sold separately: Affinity Smart-Heat On/Off Controller or Bromic Manual Wall Switch (Bromic cut sheet, control options). There's no dimmer option for the gas heaters.
What's in the Box
- Tungsten Smart-Heat Gas heater (your size and fuel)
- Wall bracket / control housing with pivot arm
- CSA-approved flexible gas connector
- Mounting bolts and washers
Not included: a control (see above), ceiling mounting pole (needed for ceiling mounting; six lengths), heat deflector, and the gas line and installation.
FAQ
Can it go on a covered patio?
Yes — that's what it's for. Bromic's manual requires it to be protected from rain and installed under a cover, and in a space with a roof and more than two walls at least 25% of the wall area must be completely open.
Do I need an electrician or a gas fitter?
A qualified gas installer for the gas connection. The electrical side is a standard 110 V outlet for ignition and controls (under 2 A), not a dedicated heating circuit.
How does it handle wind?
Bromic's installation manual rates it to function in winds up to 10 mph, with reduced performance or failure possible in high wind.
What does it cost to run?
The gas input is 26,000 BTU/hr (300) or 43,000 BTU/hr (500). Gas prices vary by utility and tank supplier, so use that figure with your own rate.
How do I control it?
With an Affinity On/Off Controller or a Manual Wall Switch, both sold separately.
What's the warranty?
2 years from Bromic, excluding maintenance items (hoses and igniters). Bromic supplies the replacement heater or part; labor and shipping are the owner's. Claims start with the dealer — contact us and we'll help you through Bromic's process.
Sizing Help
Coverage, mounting height, gas vs. electric and how many heaters you need: read the Bromic patio heater buying guide, or compare every model in Bromic patio heaters.
Is this the right heater for your space?
Written from Bromic Heating's installation manual. Not sure? Call or text (814) 440-4817 with the space and we'll confirm the count and the size.
Who it's for
Covered outdoor spaces — covered patios, porches, terraces and outdoor rooms, residential or commercial. It must be protected from rain, so it goes under a roof or cover, and it's never for indoor residential use. In a space with a roof and more than two walls, Bromic requires at least 25% of the total wall area to be completely open. Pick the 500 for larger zones; the 300 for smaller zones or multi-heater runs.
Mounting & placement
Wall or ceiling. At least 8 ft from the floor; keep combustibles 3 ft from the top and sides, or 14″ from the top with the Tungsten heat shield. Ceiling mounting needs a Bromic ceiling pole (9.69″–41.18″), sold separately. Manual wind rating: up to 10 mph.
Who installs it
An authorized, qualified installer, to local codes or ANSI Z223.1/NFPA 54 and CSA B149.1. The job needs a 1/2″ NPT gas connection (natural gas or propane) and a 110 V outlet for the ignition and controls.
Specifications
Manufacturer figures. Confirm clearances and framing against the installation manual before you build.
Figures are from Bromic's Tungsten Smart-Heat Gas installation manual (US, V2.3) and the 2026 cut sheet linked below; where they differ from Bromic's website (wind rating, clearance above the heater), the manual is used. Width, height and projection are read from the manual's dimension drawing. Build to the installation manual, not to this table.
